JHKC-1 SF6 gas fast filling device
SF6 Automatic Fast Filling Device Based on Multi-source Parameter Collaborative Control

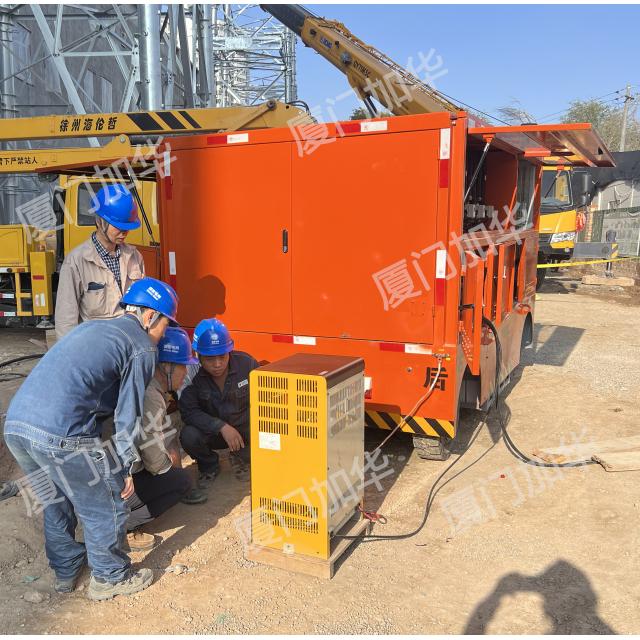

Using battery power, wireless remote control device to walk, can climb slopes of 15-30 degrees, suitable for various harsh working conditions on site
Mainly used in high-voltage electrical equipment in substations of 330 kV and above, and can also be used for charging requirements of high-voltage electrical equipment below 330 kV
Inflatable flow rate | 0-250slpm |
Flow control accuracy | ±0.5% |
Flow control range | 0.01-100% full scale |
operating temperature | -10-60°C |
Mass flow meter inlet pressure | 1 MPa |
Mass flow meter outlet pressure | 0.8MPa - vacuum |
mode of communication | Modbus RTU RS485 |
SF6 gas filling speed | 250kg/h |
